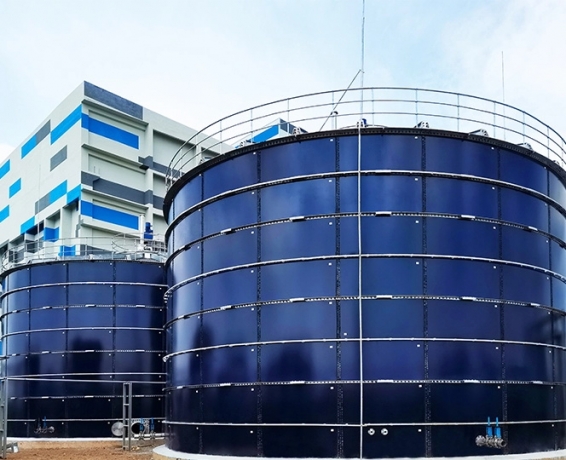

Glass fused to steel (GFS) tanks are a type of bolted storage tank made from two materials: glass and steel. High strength TRS (titanium rich steel) plates and enamels are perfectly fused at high temperatures to form a highly inert inorganic glaze layer. This coating system has excellent anti-corrosion properties and is the best choice for tank and silo.
YHR Tanks, as an experienced glass fused to steel tank manufacturers, has consistently concentrated on the research and production of glass-fused bolted steel tanks since the mid-1990s. After over two decades of continuous dedication, our glass fused water tanks have found extensive applications in domestic municipal, environmental protection, aquaculture, and various other fields. Additionally, they have been exported to international markets.
GFS-1500V Glass Fused To Steel Tanks
GFS-1500V glass fused to steel water storage tanks area high-quality, corrosion-resistant coating system for tanks and silos. It combines the strength of steel with the durability of glass, providing excellent protection against chemical and environmental factors. It is ideal for various applications, including seawater, liquid leachates and chemical industrial effluent etc.
GFS-900V Glass Fused To Steel Tanks
GFS-900V Glass Fused To enamel water tank are an economical option for those looking for a durable and corrosion-resistant storage tank. They are made of high-quality steel plates coated with a layer of glass enamel and are suitable for storing water, wastewater, and other liquids.
Uses of glass fused bolted steel tanks
Glass Fused To Steel Tanks find extensive applications across various industries, serving diverse purposes in different settings. These tanks are notably utilized in:
Water Treatment Plants
Wastewater Treatment Plants
Biogas Plants
Agriculture
Food Processing Plants, and more.
Renowned for their extended service life and minimal maintenance requirements owing to corrosion resistance and UV stability, glass-fused tanks cater to municipal, industrial, and agricultural needs.
Their exceptional corrosion resistance, durability, and easy maintenance features make them highly suitable for the storage and processing of a wide range of liquids, chemicals, and gases. Additionally, these glass fused bolted steel tanks are employed for rainwater harvesting, firefighting, and the storage of various industrial liquids.
Material Characteristics of Glass-Fused-to-Steel Tanks
The steel substrate employed in the construction of glass-fused-to-steel tanks is a specialized high-strength enamel steel, distinctively designed for superior performance. Its mechanical properties, including yield strength, tensile strength, and elongation, far surpass those of conventional steel plates.
Features: Low Carbon, High Strength, High Titanium.
FEATURES OF GLASS FUSED TO STEEL TANKS
Fast Installation and Short Construction Period
Excellent Anti-Corrosion Performance
Low Construction Site Requirements
Strong Temperature Adaptability
Factory Production, High Systematization & Rigorous Quality Control
Versatility in Applications, Seamless Integration to Form Assembled Reactors
Visually Appealing Appearance
Flexibility Of Relocation, Expansion, And Recycling
Low and Simple Maintenance & A Lifespan Exceeding 30 Years
Glass Fused To Steel Bolted Tanks Manufacturing Process
Glass-Fused-To-Steel Tank adopts high strength glass fused special steel as the base material, and uses the honing technology at high temperature of 800 degrees Celsius to fuse the anti-corrosion glaze layer with high inertia onto the surface of the base material to make standardized steel plate module.
Compared with other tanks (Carbon Steel Welded Tank/Reinforced Concrete Tank), Glass-Fused-To-Steel Tank realizes breakthrough innovation in materials, anti-corrosion technology and installation mode, and is an advanced tank manufacturing technology.
OUR GLASS FUSED TO STEEL TANKS PRODUCTION PROCESS
- Raw Material Preparation
High-strength TRS (titanium-rich steel) plates specially produced for the Glass-Fused-To-Steel Technology.
Rigorous preparation of machinery ensures optimal functionality.
- Laser Cutting
Utilizing laser cutting technology to meticulously cut steel plates with precision.
Bolt holes and nozzle apertures are precision-cut with automated lasers for accurate and efficient production.
- Shot Blasting
Surface cleaning involves removing dust particles.
All plates shall be shot blasted to SSPC SP-10/NACE2 (Near White Metal) to remove the surface oxide layer and oil pollution.
- Bending
Rolling plates are bent according to the tank diameter.
Sampling inspection ensures compliance with the tank curvature.
- Glass Coating
Panels are coated with distinct glazes for varied storage mediums.
Advanced automatic spraying coating technology as per AWWAD103 standard.
- Firing
GLASS FUSED TO STEEL - The glass coating is fused to the steel through firing.
Firing in an automatic tunnel oven at 800℃ to make glass and steel combined absolutely.
- Inspection
Adopt the industry's high-standard quality control system, and implement a rigorous inspection.
Holiday test and coating thickness test on every plate to ensure outstanding factory quality.
There are many bolted tank manufacturers, but we are one of the best choices for you.
